YX25-215-860 Pre-painted Galvalume Steel Roofing Sheet Aluminum Roof Tiles for Warehouse
Product Description
Pre-painted Aluminum Roof Tiles made from pre-painteed galvanized Steel Sheet/coil,formed by rolling machine.
It is a popular metal building material for both industrial and civil constructions.
| MODEL | YX20-215-860(1075) |
| Effective Coverage Width(mm) | 860/1075 |
| Expansion Width(mm) | 1000/1200 |
| Steel Thickness (mm) | 0.5 | 0.6 | 0.8 |
| Section Monment of Inertia(cm4/m) | 8.01 | 10.74 | 14.02 |
| Section Resistance Moment(cm3/m) | 3.62 | 5.92 | 7.98 |
Advantage of corrugated steel sheet
(1)-Easy installation
(2)-Nice appearance
(3)-Low in costs
(4)-Durable
(5)-High strength
(6)-Anti oxidation
Raw material of corrugated steel sheet
(1)-Hot dipped galvanized steel sheet/coil
(2)-Pre painted galvanized steel sheet/coil
(3)-Galvalume steel sheet
(4)-Pre painted galvalume steel sheet
(5)-Other metal sheet like aluminum sheet; copper shet
Steel grade of corrugated steel sheet
(1)-SGCC
(2)-DX51D+Z
(3)-DC51D
(4)-SGC340
(5)-DX52D+Z
Specification of corrugated steel sheet
(1)Thickness-Normal 0.2mm-0.6mm
(2) Rib height-25mm
(3) Wave span-205mm
(4) Wave no.-5
(5) Effective Width-1025mm
(6) Length-No longer than 11800mm (for transportation purpose)
Usage of corrugated steel sheet
(1)-Roof
(2)-Wall
(3)-Ceiling
(4)-Fence
Packing of corrugated steel sheet
(1) Package quantity -About 200pcs /package
(2) Package materials-Brown paper
(3) Enlace -2-4 steel strips
Loading of corrugated steel sheet
(1)20GP size-5.85M (L)*2.23M (W)*2.258M (H)
(2) 40GP size-11.8M (L)*2.23M (W)*2.258M (H)
(3) Chose 1-Max length ≤ 5800mm; we use 20GP
(4) Chose 2-Max length ≥5800mm; we use 40GP
(5) Introduction of 20ft container:
| 20’CONTAINER SPECIFICATION |
| Interior Dimension | Door Opening: | Tare Weight | Payload | Cubic Capacity | Average Loadability |
| L: 5,898mm | W: 2,340mm | 2,200kg | 24,800kg | 33.0 cbm | 28.0 cbm |
| W: 2,350mm | H: 2,280mm |
| H: 2,393mm | |

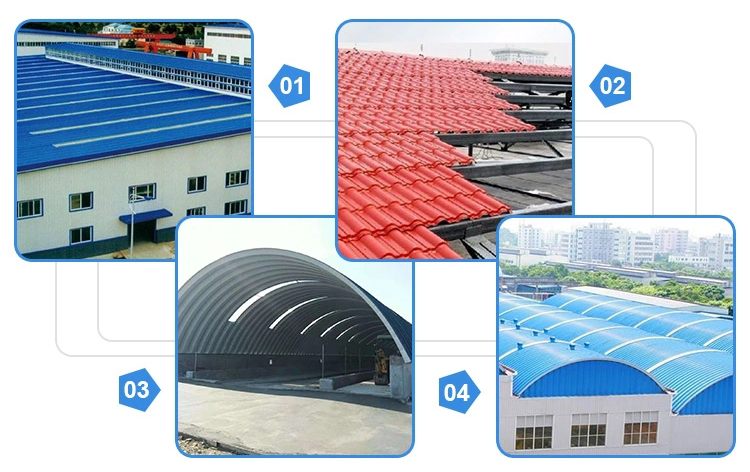

Applications of corrugated steel sheet
Gymnasium; warehouse; hospital; shelter; supermarket; Commercial facilities; industrial facilities
Available models of roof tiles press steel
| YX8-130-910 | YX10-112.5-900 | YX10-110-880 | YX14-65-850 |
| YX15-140-840 | YX16-225-900 | YX16-80-850 | YX18-63.5-825 |
| YX25-210-840(SHEET) | YX25-210-840(TILE) | YX25-215-860 | YX25-85-765 |
| YX26-205-820 | YX26-205-1025 | YX28-150-750 | YX28-150-900 |
| YX28-280-840 | YX32-130-780 | YX35-125-750 | HV51-380-760 |
| HV51-410-820 | HV66-394-788 | YX130-300-600 | As your design |
Standard and certificate of corrugated steel sheet
(1) standard-GB/T 12755-2008; ASTM; JIS
(2) certificate-ISO9001-2000
Production Flew:
FEED--PRESS--CUTTING
